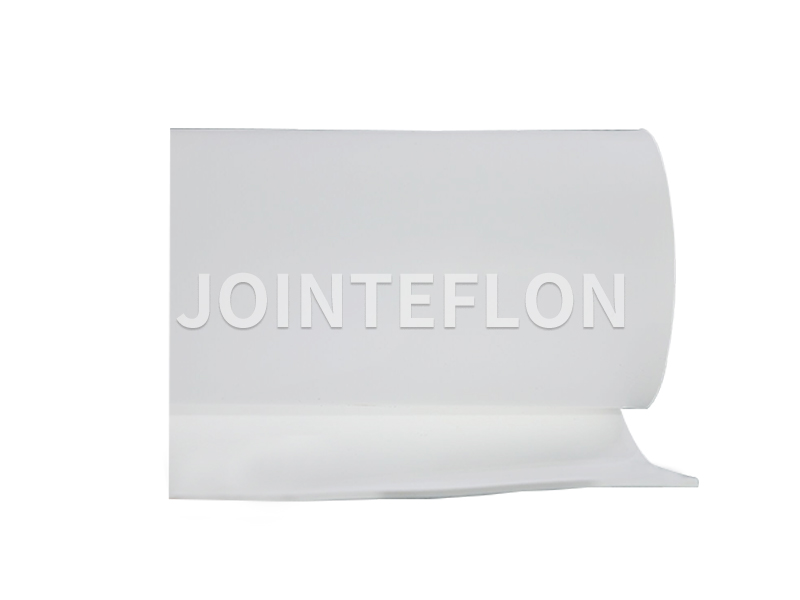

Expanded PTFE Sheet

location:
3
1
2
1
3
4
3
1
2
1
3
4

Expanded PTFE Sheet

Model JT-100
Material Virgin PTFE
Density 0.8-1.0 g/cm³
Size 1500×1500mm, 1500×3000mm,1500×4500mm
Tensile Strength ≥10 MPa
Temperature -268~ +280℃
Melting Point 320℃
Pressure ≤140mpa
PH 0 - 14
Colour White
Creep Relaxation 68.32%

Introduction

Expanded PTFE Sheet is made from 100% virgin PTFE with biaxially oriented, and more strength than joint sealant,in possession of the characteristics of self-lubrication, low coefficient of friction and chemical corrosion resistance.It is an ideal corrosion-resistant material. Due to its high chemical stability, through the study of processing technology, PTFE sheet is more and more widely used in industry, and it can resist almost all commonly used materials.

Application

Expanded PTFE sheet is an all purpose gasket sheet that can replace all other types of PTFE sheet. It will seal all aggressive chemicals over the entire 0-14 pH range except for molten alkali metals and elemental fluorine. Made from 100% virgin PTFE, Our EPTFE not only resists chemical attack, but it will not contaminate or discolor end products.It is used as anticorrosive liner material and sealing liner material, as well as for bearing glide and electric insulation parts.
