Introduction:

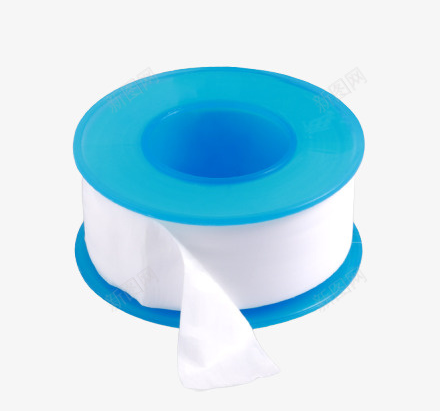

PTFE thread seal tape, also known as “Teflon tape” or “plumber's tape”, is a versatile sealing material made from polytetrafluoroethylene (PTFE), a synthetic fluoropolymer. Renowned for its non-stick properties and chemical resistance, PTFE thread seal tape is widely used in plumbing and other applications that require effective sealing of threaded connections. Below is a detailed introduction to PTFE thread seal tape:
1. Composition and Properties:
Chemical Composition: PTFE thread seal tape is made from polytetrafluoroethylene, a polymer consisting of carbon and fluorine atoms. This composition gives PTFE its unique properties, such as high resistance to heat, chemicals, and corrosion.
Physical Properties:
Temperature Resistance: PTFE tape can withstand temperatures ranging from -200°C to 260°C (-328°F to 500°F), making it suitable for both high and low-temperature applications.
Chemical Inertness: PTFE is highly resistant to most chemicals, including acids, bases, and solvents, ensuring long-lasting performance in various environments.
Low Friction Coefficient: PTFE has one of the lowest friction coefficients of any solid material, which helps in creating smooth and effective seals.
Water Resistance: PTFE is hydrophobic, meaning it repels water, which enhances its sealing capabilities in wet environments.
2. Applications:
PTFE thread seal tape is primarily used for sealing and lubricating threaded pipe connections. Its applications span across several industries and sectors:
Plumbing: In plumbing, PTFE tape is used to seal pipe threads and prevent leaks in water, gas, and air systems. It is commonly used on pipes made of materials like steel, copper, and plastic.
Automotive: The automotive industry uses PTFE tape for sealing fuel lines, hydraulic systems, and pneumatic connections, where a reliable and leak-proof seal is essential.
Industrial: In industrial settings, PTFE tape is used in applications involving chemicals, gases, and high-pressure systems. Its chemical resistance and high-temperature stability make it ideal for these environments.
Aerospace: The aerospace industry utilizes PTFE tape for sealing hydraulic and pneumatic systems, where reliability and safety are critical.
Medical: In medical applications, PTFE tape is used in devices and equipment that require a non-reactive and biocompatible sealing material.
3. Advantages:
Ease of Use: PTFE thread seal tape is easy to apply. It can be wrapped around threads in a few simple turns, and it conforms to the shape of the threads, ensuring a tight seal.
Reusability: Unlike liquid sealants, PTFE tape does not harden or cure, allowing for easy disassembly and reassembly of threaded connections without damaging the tape or the threads.
Cost-Effectiveness: PTFE tape is an inexpensive solution for sealing threaded connections, providing a high level of performance at a low cost.
Versatility: Its ability to withstand a wide range of temperatures and resist most chemicals makes PTFE tape suitable for diverse applications.
4. How to Use PTFE Thread Seal Tape:
1. Clean the Threads: Ensure that the threads are clean and free of debris or old sealant.
2. Wrap the Tape: Hold the end of the tape against the male threads and wrap it around the pipe in the direction of the threads (clockwise). Typically, 3-5 wraps are sufficient, but this can vary depending on the application.
3. Apply Pressure: Apply gentle pressure while wrapping to ensure the tape adheres to the threads and fills the gaps.
4. Assemble the Connection: Screw the male threads into the female threads, ensuring a snug fit. The tape will compress and form a seal.
5. Safety and Environmental Considerations:
Non-Toxic: PTFE is non-toxic and safe for use in applications involving potable water and food processing.
Recyclability: While PTFE is not biodegradable, it can be recycled, and efforts are being made to improve the sustainability of PTFE products.
6. Conclusion:
PTFE thread seal tape is an indispensable tool in plumbing and other industries that require reliable sealing of threaded connections. Its unique properties, ease of use, and cost-effectiveness make it a popular choice for professionals and DIY enthusiasts alike. As technology advances, the applications and benefits of PTFE thread seal tape are likely to expand, further cementing its place as a staple in the world of sealing solutions.
