Introduction：

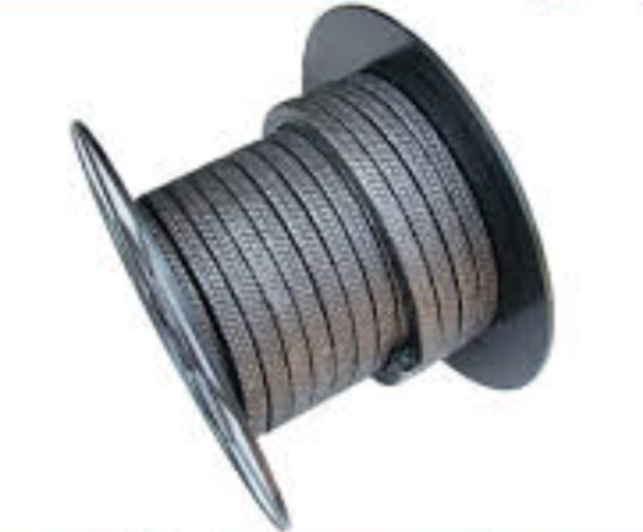

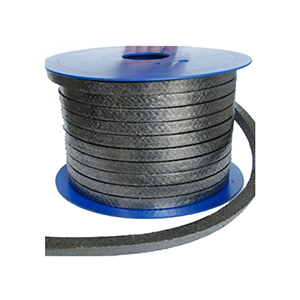

Flexible Graphite Packing is a specialized sealing material widely used in various industrial applications. It is primarily composed of expanded graphite, which is made from natural graphite flakes. The manufacturing process involves treating the graphite with acids and oxidizing agents, followed by intense heat treatment that causes the graphite to expand. This expanded graphite is then rolled into a continuous sheet without the need for binders, resulting in a flexible and low-density material.
Key Features and Benefits:
High Temperature Resistance: Flexible graphite packing can withstand extreme temperatures ranging from -196°C to 2,500°C in inert gas environments and up to 450°C/550°C in air.
Excellent Chemical Resistance: It exhibits superior resistance to most chemicals, making it suitable for use in harsh chemical environments.
Thermal and Electrical Conductivity: The material is known for its high thermal conductivity, which helps in dissipating heat effectively. It also possesses good electrical conductivity.
Compression and Recovery: Flexible graphite packing has high compressibility and excellent elastic recovery, ensuring a reliable seal even under fluctuating conditions.
Versatility: It is used in various applications, including valve stems, pumps, and pipe connections, providing both static and dynamic sealing solutions.
Applications:
Industrial Equipment: Widely used in valves, pumps, and reactors in industries such as chemical processing, oil and gas, and power generation.
High-Pressure and High-Temperature Environments: Ideal for sealing applications in environments with extreme pressures and temperatures.
Corrosive Media: Suitable for sealing hot water, steam, heat transfer fluids, hydrogen, ammonia, organic solvents, and hydrocarbons.
Advantages:
Durability: The material does not degrade easily, ensuring long-lasting performance.
Ease of Installation: It can be easily cut and shaped to fit various sealing requirements.
Cost-Effectiveness: Due to its durability and effectiveness, it often proves to be a cost-effective sealing solution.
In summary, flexible graphite packing is a highly reliable and versatile sealing material, offering exceptional performance in a wide range of industrial applications. Its unique combination of properties makes it an ideal choice for demanding sealing environments.
